SpectraPor® Float-A-Lyzer®
Ready-to-use dialysis devices are all made with proprietary Biotech Grade CE dialysis tubing, pre-assembled with volume specific lengths of membrane tubing and designed to maximize convenience, ease-of-use and sample recovery.
Unique design
Tubular membrane allows for maximum surface area and minimum volume uptake & dilution. Float ring ensures buoyancy and vertical orientation
Easy to use
Screw-on cap and pipette provides easy and safe sample loading and in-process testing with no dangerous needles
Total sample recovery
Cylindrical shape provides open access for 95-98% sample volume recovery
Broad MWCO range
9 MWCOs from 0.1 - 1,000 kD for all dialysis applications from small peptides to large nanoparticles
High purity
Achieve 98% sample purity with Biotech CE membrane, no heavy metal and sulfides
Featured application
- Drug Dissolution: Controlled release for dose determination
- USP Apparatus 2 and 4 compatible
SpectraPor® Float-A-Lyzer® Dialysis Device

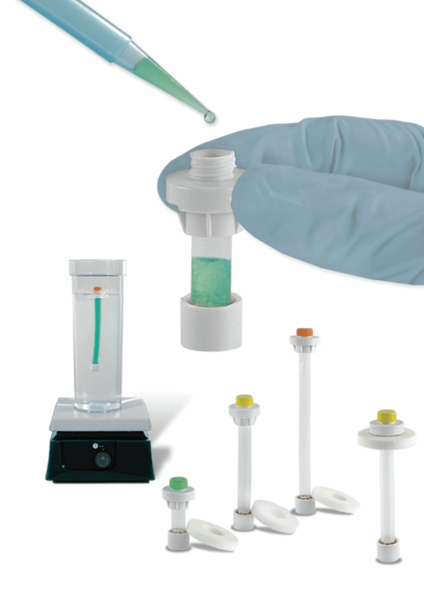

The SpectraPor® Float-A-Lyzer® Dialysis Device is a unique and leak-proof, ready-to-use device designed for easy and convenient dialysis of small sample volumes from 1 – 10 ml. The device is made with high purity Biotech Grade Cellulose Ester (CE) membrane in 9 MWCOs from 0.1-1,000 kD. Screw cap lid and included pipette allow for easy loading, in-process testing and sample retrieval without the risk of needle punctures.
Biotech CE membrane exhibits a fair chemical compatibility and tolerates pH 2-9 and temp 4-37 °C. Exposure to most organic solvents is not recommended and should be confirmed on the Repligen Chemical Compatibility table.
FEATURES
- 3 ready-to-use volume sizes (1 ml, 5 ml & 10 ml)
- 9 Concise MWCO’s for better selectivity & separations
- High purity Biotech Cellulose Ester (CE) membrane
- Leak-proof and color-coded screw cap
- Complete with floatation ring and pipette included

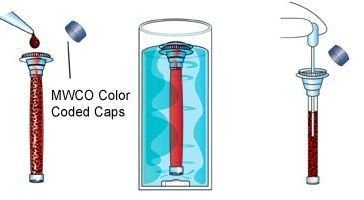

Three easy steps
-
Rinse with water
-
Load sample
-
Dialyze
Typical Dialysis Applications for Float-A-Lyzer® Dialysis Devices
- Drug dissolution and controlled release studies
- Salt, urea, surfactant and cesiuam removal
- HPLC sample preparation
- pH change, buffer exchange and final formulation
- Purification of Protein, DNA, plasmids, macromolecules, nanoparticles and liposomes
- Biopolymer purification and removal of monomers
- Enzyme activity and ligand binding studies
- DNA and Protein electroelution
Product Specifications
SpectraPor® Float-A-Lyzer® Dialysis Device Part Numbers
|
MWCO |
Color Code |
1 ml |
5 ml |
10 ml |
Quantity |
|
|
0.1 - 0.5 kD |
Green |
12/pkg |
||||
|
0.5 - 1 kD |
Orange |
12/pkg |
||||
|
3.5 - 5 kD |
Black |
12/pkg |
||||
| CE |
8 - 10 kD |
Yellow |
12/pkg |
|||
|
20 kD |
Red |
12/pkg |
||||
|
50 kD |
Violet |
12/pkg |
||||
|
100 kD |
Blue |
12/pkg |
||||
|
300 kD |
Amber |
12/pkg |
||||
|
1000 kD |
Pink |
12/pkg |
Repligen produces molecular porous Biotech Grade Cellulose Ester (CE) membranes in a large range of MWCO’s specifically for critical MW separations using a proprietary casting process free of heavy metal and sulfur contaminants. The CE dialysis tubing is ultra-pure and does not require special cleaning or treatment.
