SpectraPor® 1-5 Dry Standard Grade Regenerated Cellulose (RC) Dialysis Tubing & Trial Kits

Repligen’s Standard Grade Regenerated Cellulose (RC) membrane is available as dry rolled tubing as an economical and versatile option for general dialysis applications in which there is a significant size difference between the molecular weights of the species being separated.

SpectraPor 1-5 dry standard grade (RC) dialysis tubing and kits

SpectraPor® 1-5 RC dialysis tubing is packaged in dry rolls and trial kits for easy handling and storage convenience. This tubing is ideal for less critical applications requiring larger amounts of dialysis tubing. While most dry Standard RC tubing contains glycerin used as a humectant, some dry Standard RC dialysis tubing is available without glycerin and does not require soaking prior to use. Dry RC membrane has no fixed charge, exhibits low adsorption and contains trace levels of heavy metals and sulfur compounds. Standard Grade RC membrane has a good chemical compatibility with concentrated-weak or diluted-strong acids and bases, most alcohols and some organic solvents, while tolerating pH 2 - 12 and temperature 4 - 121° C. Compatibility to specific solvents should be confirmed on the Repligen Chemical Compatibility table.

Consider Customized SpectraPor 1-5 dialysis tubing specifically for GMP multi-batch and Large Volume Dynamic Dialysis.

Features and benefits

Low cost and economical membrane
Good chemical compatibility and operating conditions tolerance
Dry for easy handling and storage
No azide preservative solution
Available in rolled tubing for economy and trial kits for evaluation

Typical Dialysis Applications for Dry Standard RC

Salt removal and HPLC sample preparation
pH change, buffer exchange and final formulation
Removal of urea, surfactants and small MW impurities
Biopolymer and hydrogel purification (hyaluronic acid, collagen, chitosan)
Large volume and GMP batch process dialysis
Organic solvent dialysis
Ecological, marine and ground water studies

Product specifications

Dry SpectraPor^® 1-5

Properties	Hydrophilic
Properties:	hydrophilic
3 MWCO's:	3.5 kD, 6-8 kD, 12-14 kD
14 Flat Widths:	10 mm, 18 mm, 23 mm, 25 mm, 32 mm, 40 mm, 45 mm, 50 mm, 54 mm, 75 mm, 100 mm, 105 mm, 120 mm, 150 mm
Quantity & Packaging:	Dry, 30 m/roll, 15 m/roll or 5 m/trial kit (includes 2 closures)

5 different categories are available depending on specific application requirements:

Membrane Type	Purpose	MWCO	Flat Widths (MM)
SpectraPor^® 1 Dialysis Membrane	Basic Dialysis	6-8 kD	10, 23, 32, 40, 50, 100, 120
SpectraPor^®2 Dialysis Membrane	Higher permeability	12-14 kD	10, 25, 25, 105, 120
SpectraPor^® 3 Dialysis Membrane	Basic Dialysis	3.5 kD	18, 45, 54
SpectraPor^® 4 Dialysis Membrane	Basic Dialysis	12-14 kD	10, 25, 32, 45, 75
SpectraPor^® 5 Dialysis Membrane	Reinforced for Weight	12-14 kD	75, 150

SPECTRAPOR® STANDARD RC DRY DIALYSIS TUBING

	MWCO (kD)	Glycerin (yes/no)	Flat Width (mm)	Diameter (mm)	Vol/Length (ml/cm)	Length (m)	Part No.
Spectra/Por 1	6-8	yes yes yes yes yes yes yes	10 23 32 40 50 100 120	6.4 14.6 20.4 25.5 32 64 76	0.32 1.7 3.3 5.1 7.9 32 46	15 30 30 30 30 15 15	132645 132650 132655 132660 132665 132670 132675

Spectra/Por 2	12-14	yes yes yes yes yes	10 25 45 105 120	6.4 16 29 67 76	0.32 2.0 6.4 34 46	15 15 15 15 15	132676 132678 132680 132682 132684

Spectra/Por 3	3.5	yes no no	18 45 54	11.5 29 34	1.1 6.4 9.3	15 15 15	132720 132724 132725

Spectra/Por 4	12-14	yes yes yes yes yes	10 25 32 45 75	6.4 16 20.4 29 48	0.32 2.0 3.3 6.4 18	30 30 30 30 15	132697 132700 132703 132706 132709

Spectra/Por 5	12-14	no no	75 140	48 89	18 62	15 15	132754 132757

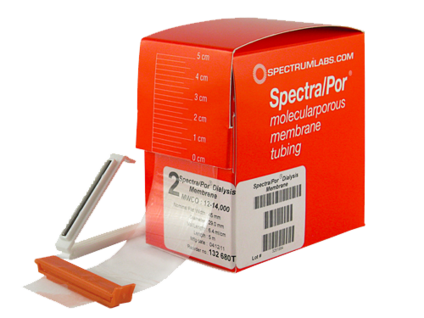

SpectraPor® Standard RC Dry Dialysis Trial kits

	MWCO (kD)	Glycerin (yes/no)	Flat Width (mm)	Diameter (mm)	Vol/Length (ml/cm)	Length (m)	Part No.
Spectra/Por 1	6-8	yes yes yes yes yes yes yes	10 23 32 40 50 100 120	6.4 14.6 20.4 25.5 32 64 76	0.32 1.7 3.3 5.1 7.9 32 46	5 5 5 5 5 5 5	132645T 132650T 132655T 132660T 132665T 132670T 132675T

Spectra/Por 2	12-14	yes yes yes yes yes	10 25 45 105 120	6.4 16 29 67 76	0.32 2.0 6.4 34 46	5 5 5 5 5	132676T 132678T 132680T 132682T 132684T

Spectra/Por 3	3.5	yes no no	18 45 54	11.5 29 34	1.1 6.4 9.3	5 5 5	132720T 132724T 132725T

Spectra/Por 4	12-14	yes yes	32 75	20.4 48	3.3 18	5 5	132703T 132709T

Spectra/Por 5	12-14	no no	75 140	48 89	18 62	5 5	132754T 132757T

SpectraPor® 1-4 Ready-to-use Dialysis Sacks (for large volume)

SpectraPor 1-4 Ready-to-Use Dialysis Sacks are the same Standard RC Dialysis Tubings that have been pre-wetted and preassembled with tubing closures and attached funnel for easy large volume sample loading and dialysis (10/pkg).

View All	MWCO (kD)	Flat Width (mm)	Diameter (mm)	Vol/Length (ml/cm)	Volume (ml)	Qty.	Part No.
Spectra/Por 1	6-8	50	32	7.9	80 - 400	10	132666

Spectra/Por 2	12 -14	45	29	6.4	80 - 320	10	132681

Spectra/Por 3	3.4	54	34	9.3	90 - 450	10	132726
