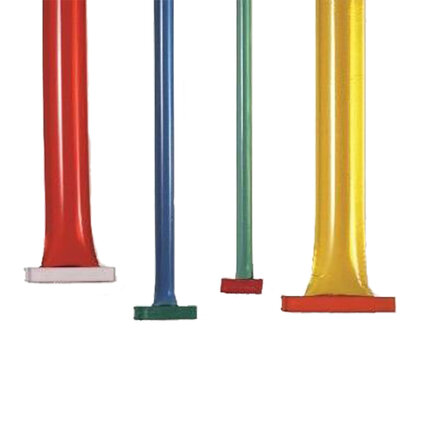

SpectraPor® Pre-treated Standard Grade RC Dialysis Tubing and Trial Kits

Repligen provides a high purity, clean Standard Grade Regenerated Cellulose (RC) dialysis tubing that has been pre-treated for more critical applications that could be negatively impacted by the presence of trace heavy metals, sulfur compounds and membrane adherent impurities.

SpectraPor® Pre-treated standard RC dialysis tubing and kits

SpectraPor® 7 RC dialysis tubing is chemically treated to specifically minimize the heavy metals and sulfur compound impurities inherent to all regenerated cellulose membranes that could otherwise interfere with protein function, enzyme activity or molecular purity. SpectraPor® 7 is packaged wet in a 0.05% sodium azide solution and only requires a quick rinse to remove the preservative. All Standard Grade RC membranes carry no fixed charge, exhibits low adsorption and have good chemical compatibility with concentrated-weak or diluted-strong acids and bases, most alcohols and some organic solvents, while tolerating pH 2 - 12 and temperature 4 - 121° C. Compatibility to specific solvents should be confirmed on the Repligen Chemical Compatibility Table.

Features and benefits

High purity for critical and GMP dialysis - no heavy metals or sulfides
Rigidly controlled porosity for better selectivity & separations
No interference with macromolecular activity & function
No glycerin removal and no pretreatment required
Available in rolled tubing for economy and trial kits for evaluation

Typical Dialysis Applications for Biotech CE

Salt removal and HPLC sample preparation
pH change, buffer exchange and final formulation
Purification of Protein, DNA, plasmids, macromolecules, nanoparticles and liposomes
Polymer synthesis and isolation (polypeptide, oligonucleotide, polysaccharide)
Biopolymer and hydrogel purification (hyaluronic acid, collagen, chitosan)
Large volume and GMP batch process dialysis
Enzyme activity and ligand binding studies
Drug dissolution and controlled release studies
DNA and Protein electroelution

Properties	hydrophobic, symmetric porosity
9 MWCO's:	1 kD, 2 kD, 3.5 kD, 8 kD, 10 kD, 15 kD, 25 kD and 50 kD
4 Flat Widths:	12 mm, 18 mm, 24 mm, 28 mm, 32 mm, 34 mm, 40 mm, 50 mm & 54 mm
Packaging:	Wet with 0.05% sodium azide preservative
Quantity	5 m Rolled Tubing 1 m Trial Kit (includes a pair of closures)

Spectrapor® 7 Standard RC Pre-treated Dialysis Tubing

MWCO (kD)	Flat Width (mm)	Diameter (mm)	Vol/Length (ml/cm)	Part No.
1 kD	18 38 45	11.5 24 29	1.1 4.6 6.4	132103 132104 132105

2 kD	18 38 45	11.5 24 29	1.1 4.6 6.4	132107 132108 132109

3.5 kD	18 45 54	11.5 29 34	1.1 6.4 9.3	132110 132111 132112

8 kD	12 18 24 32 40 50	7.5 11.5 15 20.4 25.5 32	0.45 1.1 1.8 3.3 5.1 7.9	132113 128358 132114 132115 132116 132131

10 kD	12 18 24 32 45	7.5 11.5 15 20.4 29	0.45 1.1 1.8 3.3 6.4	132117 128418 132118 132119 132120

15 kD	12 24 32 45	7.5 15 20.4 29	0.45 1.8 3.3 6.4	132121 132122 132123 132124

25 kD	12 18 28 34	7.5 11.5 18 22	0.45 1.1 2.5 3.7	132125 128518 132126 132127

50 kD	12 28 34	7.5 18 22	0.45 2.5 3.7	132128 132129 132130

Spectrapor® 7 Standard RC Pre-treated Dialysis Trial Kits

MWCO (kD)	Flat Width (mm)	Diameter (mm)	Vol/Length (ml/cm)	Part No.
1 kD	18 38 45	11.5 24 29	1.1 4.6 6.4	132103T 132104T 132105T

2 kD	18 38	11.5 24	1.1 4.6	132107T 132108T

3.5 kD	45 54	29 34	6.4 9.3	132111T 132112T

8 kD	32 50	20.4 32	3.3 7.9	132115T 132131T

10 kD	32 45	20.4 29	3.3 6.4	132119T 132120T

25 kD	28 34	18 22	2.5 3.7	132126T 132127T

50 kD	28 34	18 22	2.5 3.7	132129T 132130T
