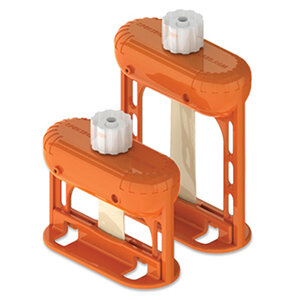

SpectraPor® Micro Float-A-Lyzer®
Micro Float-A-Lyzer® ready-to-use dialysis devices are all made with proprietary Biotech Grade CE dialysis tubing, preassembled with volume specific lengths of membrane tubing and designed to maximize convenience, ease-of-use and sample recovery.
Unique design
Tubular membrane for max surface area with incorporated air bladder, stand and interlocking pegs
Easy to use
Screw-on cap and pipette provides easy and safe sample loading and in-process testing with no dangerous needles
Total sample recovery
Syringe aspiration of clamp sealed membrane for 90-98% sample recovery
Broad MWCO range
7 MWCO’s from 0.1 - 100 kD for molecular selectivity from small peptides to large nanoparticles
High purity
Achieve 98% sample purity with Biotech CE membrane, no heavy metals and sulfides
Featured application
Drug Dissolution: Controlled release for dose determination
USP Apparatus 2 and 4 compatible
Designed for ultimate convenience, the Micro Float-A-Lyzer® significantly improves handling and dialysis of microliter volume samples. This ready-to-use dialysis device is constructed with high purity Biotech Grade Cellulose Ester (CE) membrane in 7 concise MWCOs from 0.1-100 kD for better molecular selectivity. The Luer® port and included syringe allow for easy loading, in-process testing and sample retrieval without risking needle punctures.
Biotech CE exhibits a fair chemical compatibility and tolerates pH 2-9 and temp 4-37 °C. Exposure to most organic solvents is not recommended and should be confirmed on the Repligen Chemical Compatibility table.
FEATURES
- 2 ready-to-use volume sizes (100-200 µl and 400-500 µl)
- 7 concise MWCO’s for better separations & selectivity
- High purity Biotech Cellulose Ester (CE) membrane
- Included syringe and Luer sample port for easy access (no needles)
- Self-standing, self-floating and interlocking
Data section in reprehenderit in voluptate velit esse cillum dolore eu fugiat
Typical Dialysis Applications for Micro Float-A-Lyzer® Dialysis Devices
- Drug dissolution and controlled release studies
- Salt, urea, surfactant and cesiuam removal
- HPLC sample preparation
- pH change, buffer exchange and final formulation
- Purification of Protein, DNA, plasmids, macromolecules, nanoparticles and liposomes
- Biopolymer purification and removal of monomers
- Enzyme activity and ligand binding studies
- DNA and Protein electroelution
Product Specifications
SpectraPor® Micro Float-A-Lyzer® Dialysis Device Part Numbers
|
MWCO |
Color Code |
100 - 200 µl |
400 - 500 µl |
Quantity |
|
|
0.1 - 0.5 kD |
Green |
12/pkg |
|||
|
0.5 - 1 kD |
Orange |
12/pkg |
|||
|
3.5 - 5 kD |
Black |
12/pkg |
|||
| CE |
8 - 10 kD |
Yellow |
12/pkg |
||
|
20 kD |
Red |
12/pkg |
|||
|
50 kD |
White |
12/pkg |
|||
|
100 kD |
Blue |
12/pkg |
Repligen produces molecular porous Biotech Grade Cellulose Ester (CE) membranes in a large range of MWCO’s specifically for critical MW separations using a proprietary casting process free of heavy metal and sulfur contaminants. The CE dialysis tubing is ultra-pure and does not require special cleaning or treatment.
